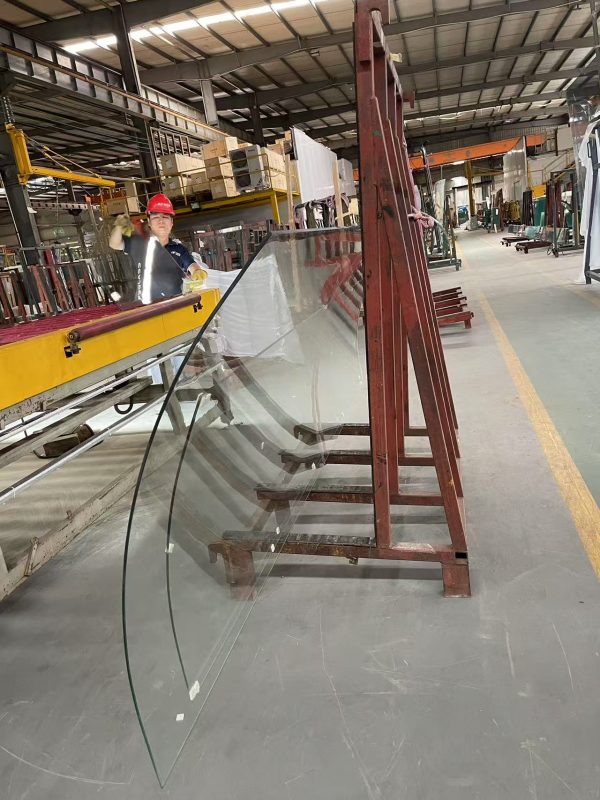

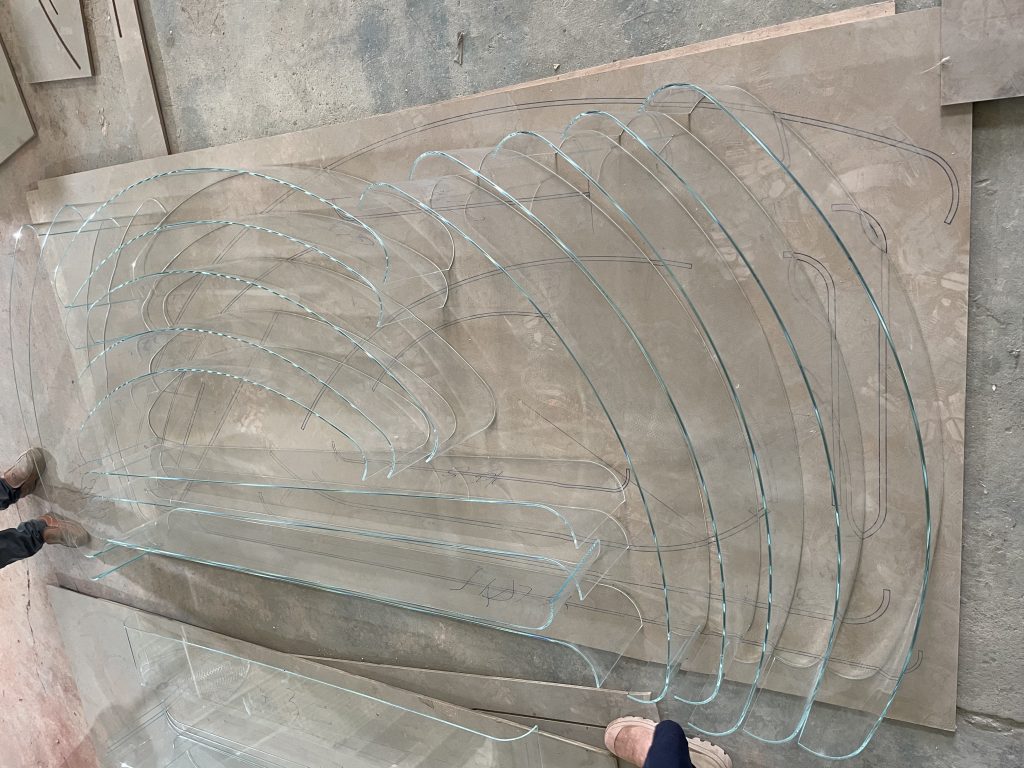

Hot Curved Glass:
Hot curved glass is made of float glass which is firstly heated to soften point on metal mould and then curved to shape by weight of glass itself and outside force, and finally cooled down.
Features: Safety, mechanical attack resistance performance and thermal stability, anti-wind pressure ability and deflection performance.
Specification:
Thickness of glass: 3mm-25mm
Max size:2800*6400 Min size: 50*50mm
Any shape is available, such as S form, U form, right-angle and spherical surface etc..

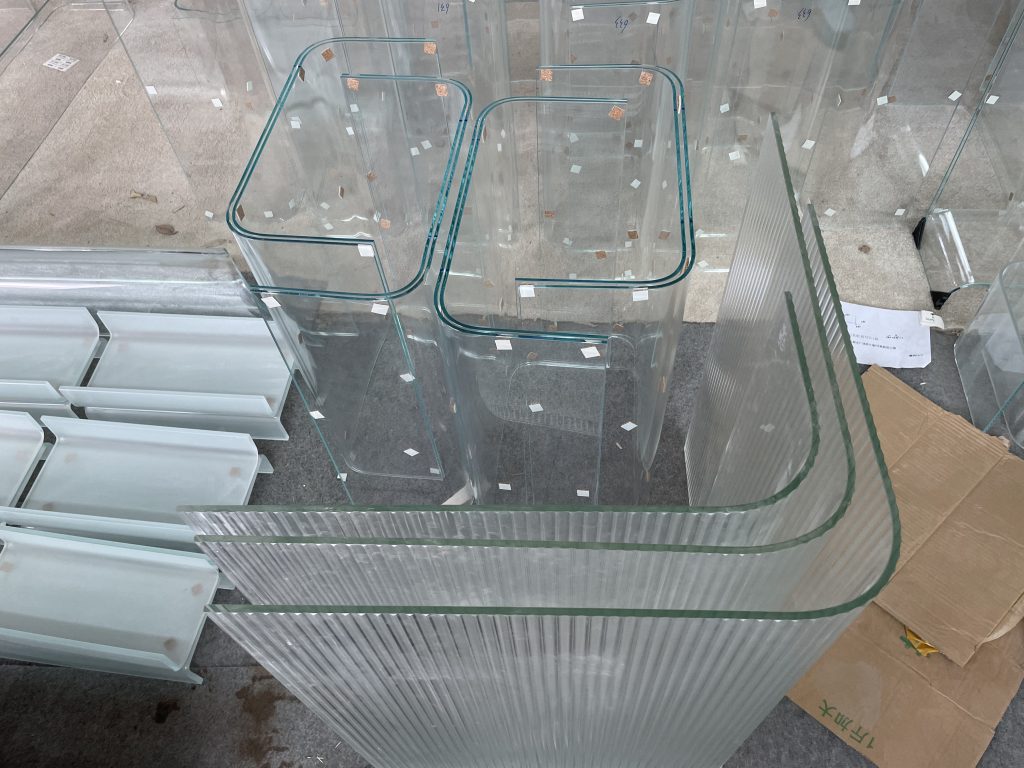

Curved Tempered Glass:
Curved tempered glass is curved to shape by fast cooling down. It’s available for different shape, but also can meet the stress requirement. It has double curved tempered and single curved tempered glass.
Speficication:
(1). Double Curved Tempered Glass Specification:
Thickness of glass: 3mm-25mm
Max Size:2000*3000 Min Size: 600*200
(2). Single Curved Tempered Glass
Thickness:5-19mm (the first line)
Max Size:3300*2800 Min Size: 600*200
Radius: 5-8mm R>=1300
10-12mm R>=1300
15-19mm R>=1300
Quality:
Hot curved glass: In accordance with Standard Q/SNY-1999 Hot Curved Glass
Curved Tempered Glass: In accordance with Standard Q/SNY-1999 Curved Tempered Glass, ISO

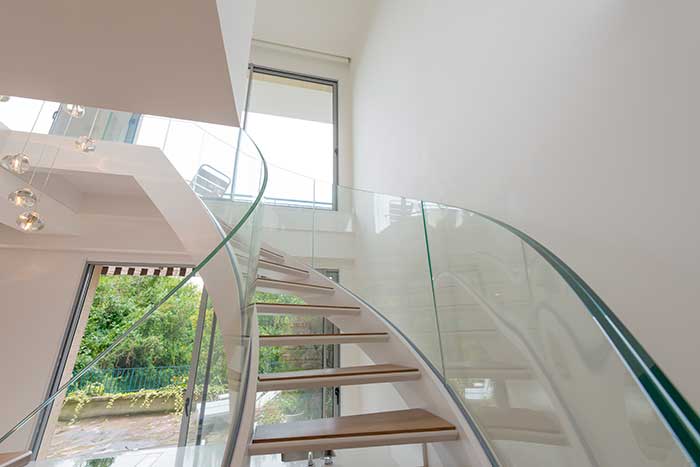

Application: curtain wall with curved structure, skylight, sightseeing elevator, indoor glass partition with curve structure, glass enclose etc.
